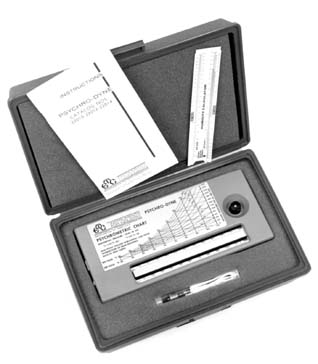

Battery Operated Psychrometer


Battery Operated Psychrometer

Battery Operated Psychrometer quickly and easily measures wet-bulb and dry-bulb temperatures. These can be converted into relative humidity or dew point temperature using a chart on the instrument face, a psychrometric slide rule (provided), or tables (also provided) for a more accurate determination.

The instrument is self contained and portable. It is small enough to be hand-held, but has an opening on the rear of the plastic case for wall-mounting if required. Three "D" cell batteries provide power for up to 1,000 observations. The instrument is designed to meet Weather Bureau Specification No. 405.8113. It consists of a matched pair of 8" long mercury thermometers, a permanent magnet fan motor, a two ounce plastic water bottle, and an illuminating lamp. The small fan creates an air flow of 15 feet/second over the thermometer bulbs and the lamp illuminates the thermometers from behind.


Two models with ranges: +10° to +120°F and -15° to +45°C.

Specifications


GEO-BP01-F +10° to +120°F (1° graduations)
GEO-BP01-C -15° to 45°C (0.5° graduations)


Accuracy: ± 0.3°F or ± 0.2°C
Size: 10" W x 4.5" D x 2" H (254 x 114 x 51 mm)
Weight/shipping: 1.25 lbs/3.5 lbs (0.6 kg/1.6 kg)
